High-quality, modular solutions that offer permanent access & collective protection for working at height.
Katt Safety’s RL20 Angled Fixed Ladder Series is designed for applications involving heights below 2.5m, making it particularly well suited to use between roof levels and plant platforms. With 4 models available, the RL20 series offers a solution for a variety of smaller safe access challenges.
The RL20 is designed with BS standards and HSE guidelines in mind, ensuring your team can remain protected and compliant on site. Each ladder uses a strong aluminium construction, is non-corrosive and features non-slip ergonomic rungs, making them durable, safe and convenient for users.
The modular design of the RL series makes it simple to configure your ladder, requiring minimal tools to be adjusted to secure the ladder system with perfect measurements. No specialised equipment is required and all configuring can be done on-site quickly and easily using the included fasteners and hardware.
Ideally suited to providing access between varying levels.
Applications include:
| Ladder exit type | 1.0m adjustable landing with grabrails | Bridging plate with grabrails (can only be used with 280mm brackets) | 1.0m fixed landing with grabrails |
| Height up to 1350mm | RL21.SA10.0135 | RL21.SF04.0135 | RL21.SF10.0135 |
| Height up to 2250mm | RL21.SA10.0255 | RL21.SF04.0255 | RL21.SF10.0255 |
| Compliance | All KATT Ladder Systems are designed to comply with requirements of B4211:2005 & BS EN ISO 14122-4:2016 and relevant statutory HSE guidelines. | ||
| Working load limit |
|
||
Ideally suited to providing access between varying levels where there is a parapet wall.
Applications include:
| Ladder exit type | 1.0m adjustable walkway | 2.4m adjustable walkway | 3.0m adjustable walkway | 1.0m fixed walkway | 2.4m fixed walkway | 3.0m fixed walkway |
| Height up to 1350mm | RL23.WA10.0135 | RL23.WA24.0135 | RL23.WA30.0135 | RL23.WF10.0135 | RL23.WF24.0135 | RL23.WF30.0135 |
| Height up to 2550mm | RL23.WA10.0225 | RL23.WA10.0225 | RL23.WA10.0225 | RL23.WF10.0225 | RL23.WF24.0225 | RL23.WF30.0225 |
| Compliance | All KATT Ladder Systems are designed to comply with requirements of B4211:2005 & BS EN ISO 14122-4:2016 and relevant statutory HSE guidelines. | |||||
| Working load limit |
|
|||||
Ideally suited to accessing elevated areas where extra safety levels are required.
The 2.4m long walkway takes the user at least 2m away from the roof edge, where it is accepted that the worker is in a safe zone.
Applications include:
| Ladder exit type | Ladder with retractable stiles |
| Height up to 1200mm | RL24.RS11.0120 |
| Height up to 2400mm | RL24.RS11.0240 |
| Compliance | All KATT Ladder Systems are designed to comply with requirements of B4211:2005 & BS EN ISO 14122-4:2016 and relevant statutory HSE guidelines. |
| Working load limit |
|

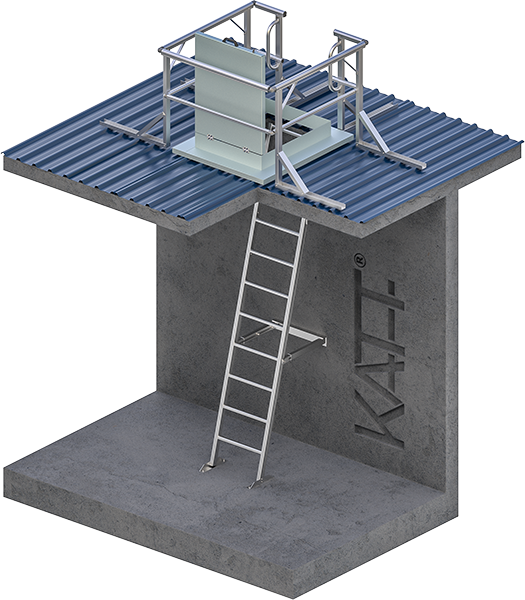

Ideally suited to providing access to elevated areas through a hatch or opening.
Applications include:
| Ladder exit type | 1.0m adjustable landing with grabrails | Bridging plate with grabrails | 1.0m fixed landing with grabrails |
| Height up to 1350mm | RL31.SA10.0135 | RL31.SF04.0135 | RL31.SF10.0135 |
| Height up to 2250mm | RL31.SA10.0255 | RL31.SF04.0255 | RL31.SF10.0255 |
| Compliance | All KATT Ladder Systems are designed to comply with requirements of B4211:2005 & BS EN ISO 14122-4:2016 and relevant statutory HSE guidelines. | ||
| Working load limit |
|
||
